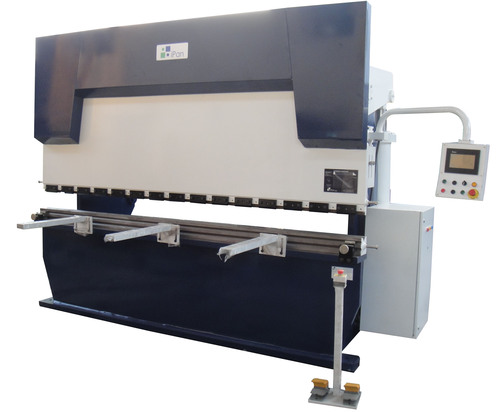

Hydraulic NC Press Brake

Hydraulic NC Press Brake
Hydraulic NC Press Brake
Send Inquiry
Product Code : 01
Brand Name : iPan
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Unit/Units
  • Price
  • 750000 INR
Product Specifications
  • Type
  • Hydraulic NC Press Brake
  • Material
  • Mild Steel
  • Computerized
  • Yes
  • Automatic Grade
  • Semi-Automatic
  • Voltage
  • 220 Volt (v)
  • Color
  • Black And Cream
  • Warranty
  • Yes
Product Description

Hydraulic NC Press Brake

We are a preeminent and coveted manufacturer, supplier and distributor of Hydraulic NC Press Brake that is produced as per stringent industry and international standards. Latest invented techniques are used in abundance by our engineers for manufacturing this highly acclaimed Hydraulic NC-CNC Press Brake . Due to our able and skilled workforce, we provide custom designed press brake to our esteemed purchasers. In addition, it guarantees robust performance and high efficiency to the users.

Features

  • User Friendliness Cybelec 6 Series Dedicated controller, Excellent readability
  • EasyBend page
  • 200 / 50 Programs
  • 24 / 12 Sequences per program
  • Complete set of Wizards to help setting up the back gauge axis and the beam axis (X-Axis & Y-Axis)
  • „Automatic management of Bending angle and Bending length
  • Ground Ballscrew from HIWIN Taiwan
  • Servo Motor operated backgauge for real time stop.

Specification

  • Bending Length (MM): 1500/ 2000/ 2500/ 3000/ 4000/ 5000/ 6000
  • Bend Material: MS/ SS/ ALUMINIUM/ BRASS/ COPPER
  • ACCURCY: ± 0.1MM / MTR
  • Thickness (MM): 2mm/ 3mm/ 4mm/ 6mm/ 8mm/ 10mm/ 13mm/ 16mm/ 20mm/ 25mm
  • Back Gauge Length: 450mm / 650mm and as per requirement

Design Features

  • Accurate right angle welded steel frame with tested material gives accurate bending
  • Five piece guide sliding device for accurate vertical movement of RAM
  • Adjustable Pressure Relief/Controlling Valve for HT material
  • Use of hardened pin and bushes gives less maintenance
  • Flexible sheet support for longer and heavier plates/sheets
  • Emergency stop push switch with moveable console including motor on/off, RAM up/ down & cycle selection switch
  • Centrally lubrication system by Hand pump at all pin, bushes and joints
  • Accurately Synchronized cylinders for equally vertical force of RAM at full length
  • Five way V- Block in one and suitable Blade
  • Ground Ball Screw from Hiwin Taiwan
  • NC Controller for easy and fast productivity
  • Magnetic glass scale for precise degree bending

Standard Accessories Including Machine

  • Pair of Blade & Bloke installed with machine
  • Operator Console & Foot switch for easier operation
  • Sheet support
  • Flexible sheet support for longer and heavier plates/sheets

Trade Information
  • Payment Terms
  • Cheque
  • Supply Ability
  • 1 Per Month
  • Delivery Time
  • 2-3 Days
  • Main Domestic Market
  • All India
